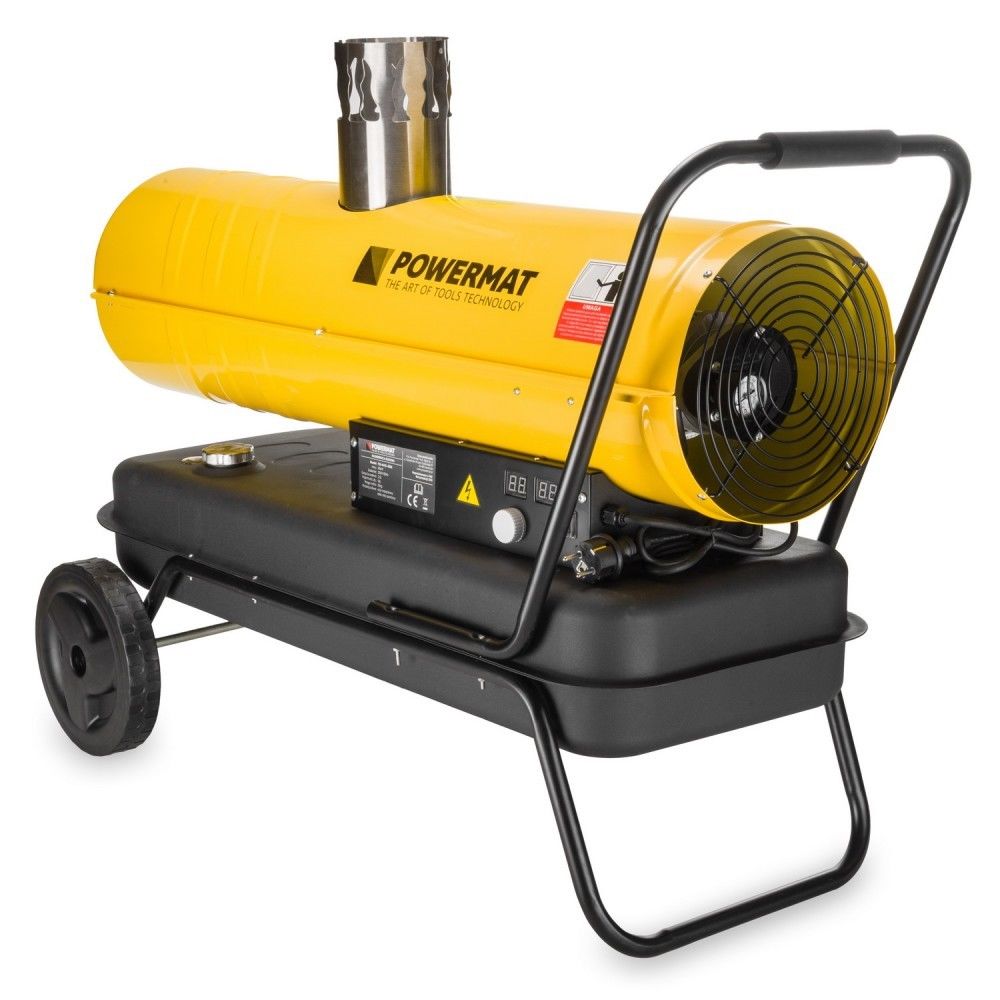

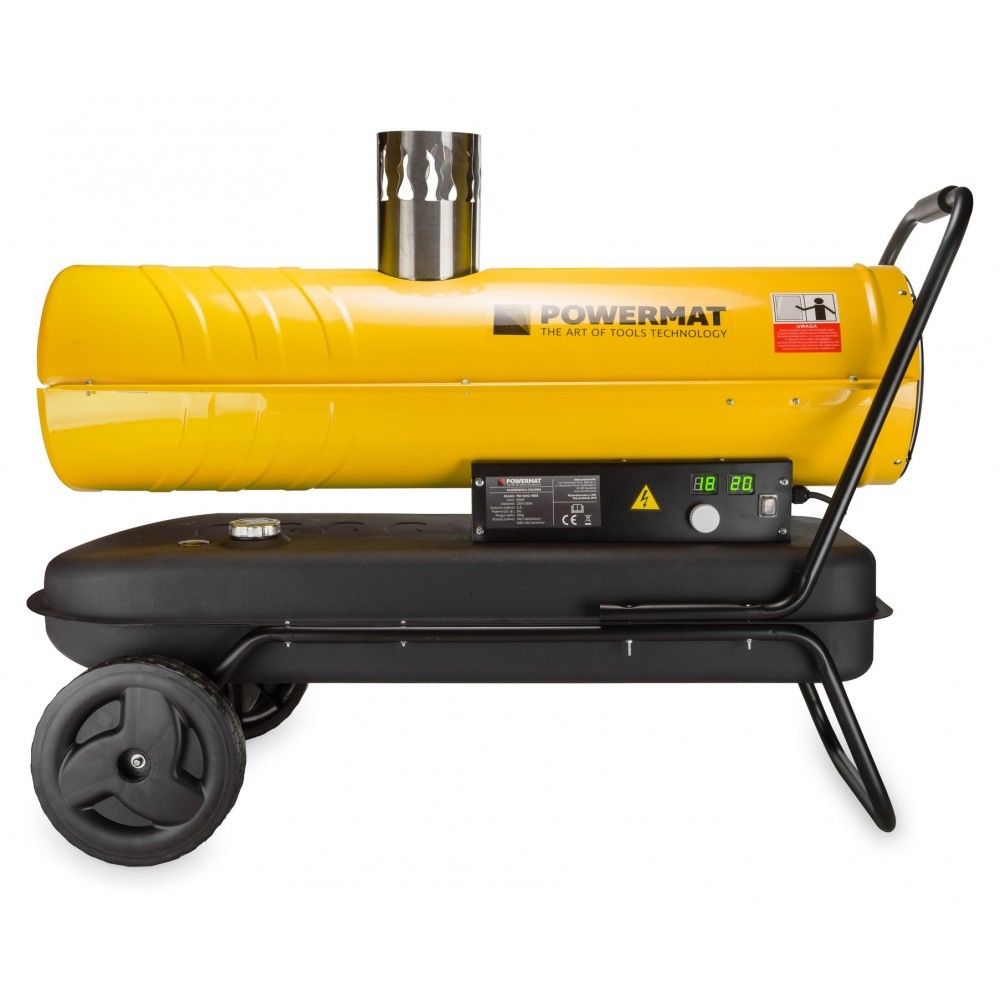

40kW Indirect Diesel Marquee Space Heater Warmer
This trolley-mounted heater provides instant heat on demand. Simple to use it is suitable for paraffin or diesel fuel. Safety features include flame failure and overheat protection with low temperature outer casing along with many others that ensure a high level of safety and performance. The heater is ideal for indoor environments with good ventilation. With the trolley kit this paraffin heater is easy to move around.
- Model: PM-NAG-40SK
- Power supply: 230V / ~ 50Hz
- Heating power: 40 kW
- Air flow: 760 m³ / h
- Recommended for space: 200 m²<
- Fuel: Diesel, Heating oil
- Fuel consumption: 2.0 l / h
- Spacing of the feet 140 x 125 mm
- Dimensions (length x width x height): 1090 x 520 x 770 mm
- Net weight: 35 kg
- Automatic oil burner
- Built-in fuel pressure indicator
- Inox stainless steel combustion chamber
- Cooling chamber function
- Electronic ignition sensor
- Overheat thermostat
- LCD Display
The heater is equipped with a digital thermostat with variable temperature control. It provides high thermal efficiency and fuel economy.
When the set temperature is reached, only the heater is automatically operated, followed by another automatic restart when the temperature drops below the temperature set on the display. This reduces fuel consumption and allows maintaining a constant temperature in the room.

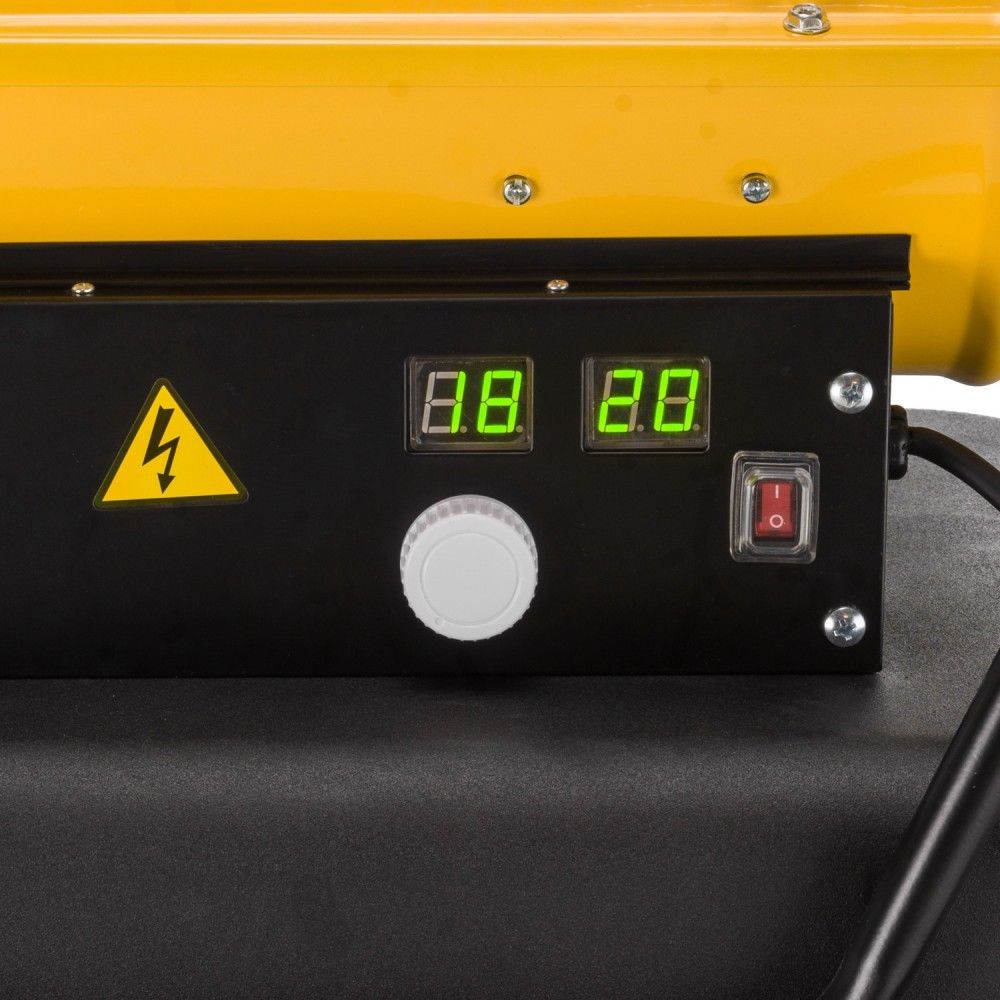

Electronic temperature control, two displays: for setting the heating temperature and showing the current ambient temperature.
EXHAUST GAS CHAMBER
The advantage of oil heaters with flue gas discharge is, of course, blown warmed air completely smoke-free.
Features such as immediate readiness to start working, simplicity of use and mobility, enabling the use of one device in different places makes them applicable in virtually every industry.
Mobile heaters with flue gas discharge are especially popular in sectors such as construction and renovation, agriculture, workshops and warehouses, special events, crisis situations, and even terrain military operations.
PERFORMANCE CHARACTERISTICS OF THE DEVICE

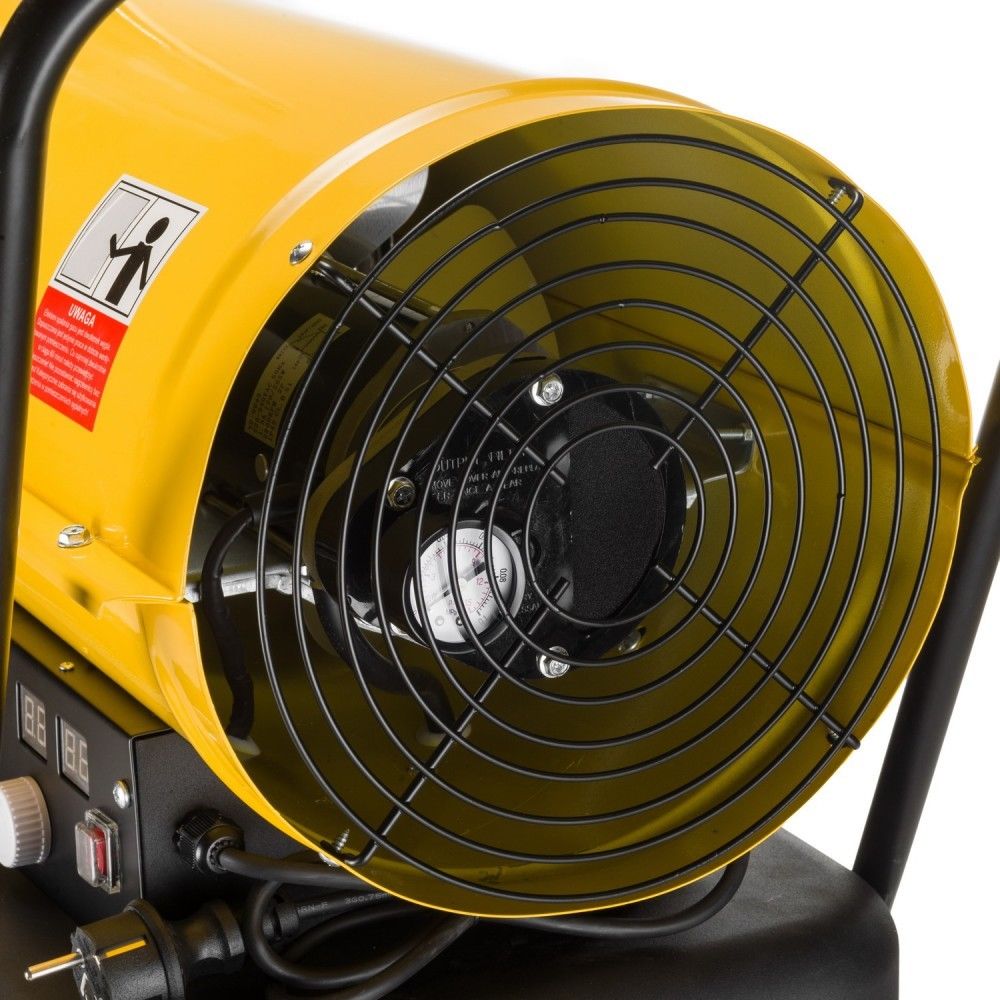

The fan forces cold air through the device and directs it towards the heater outlet. The fuel taken from the tank is injected through the nozzle into a closed combustion chamber, where the electrode releases the ignition.
The flame heats the heat exchange and the flue gases are discharged to the outside via a chimney in the upper part of the housing. Thermal energy is transferred to the air surrounding the exchange and is blown out of the heater in the form of a monotonous stream of clean and hot air.
